Product Description



Description :

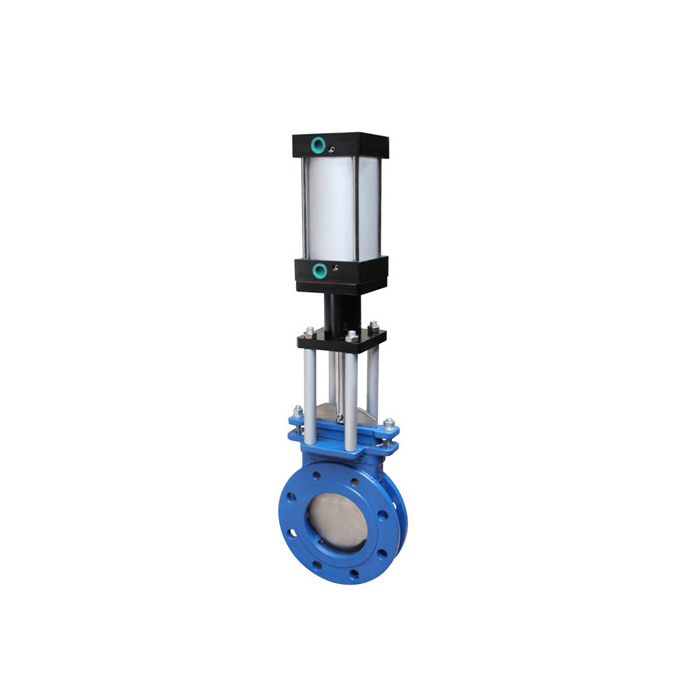

Knife gate valve depends on the knife shape disc to cut off media. When high leakage requirement is demanded, O-ring can be inserted into seat to ensure bi-directional performance. It is widely used in petrochemical, coal mining, sugar processing, waster water treatment, paper making industries. For pulp and paper manufacture, knife gate valve is frequently regarded as ideal regulation and throttling device.





Features

1. Design standard acc to MSS SP81-2001

2. Disc seal face can be lifted to remove and clean the foreign matter automatically

3. The lower part of knife disc is machined as sharp end to cut off soft media, such as fiber and pulp.

4. Straight-way flow port is designed as full circular to keep residues unattached.

5. Scientific packing seal offers security and long service life.

6. Short pattern face to face dimension presents benefits of fitting in limited installation space with material efficiency.







Product Range

Body material: carbon steel, stainless steel, alloy steel, duplex steel, etc

Nominal diameter: 2"～60"（DN50~DN1500）

Pressure range:Class150～class300（PN10~PN40）

End connection: RF, wafer, lug

Working temperature:-46℃～+560℃

Operation : handwheel, worm gear, electric actuator, pneumatic actuator, electro-hydraulic actuator , etc.
