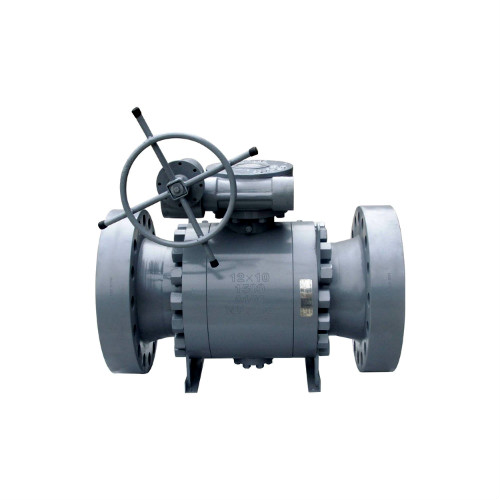

| Name: | Trunnion mounted ball valve |
| Brand: | JHF |
| Production capacity: | 3000 sets per month |
| Min Order Qty: | 1 |
| OEM and ODM: | Yes |
| Application: | Industrial |
| Certificate: | ISO,CE, API, SIL |
| Payment term: | TT, LC, COD, D/P, Credit card |
| Delivery term: | FOB, CNF, DDU |
| Packing: | plywood case |
| HS code: | 8481804090 |
| FOB Port: | Ningbo, Shanghai |
| Guarantee time: | 12 months after shipment |
| Origin: | Wenzhou, China |
Product Description
Description
The ball is supported by floating seats at both ends. When the valve closes, two floating seats will be tightly attached to the ball. Meanwhile the stem will be mounted with sliding bearing to reduce the friction and operation torque. It is suitable for high pressure and large dimension valves.
Design Features
1. Design standard acc.to ISO14313, ASME B16.34, API 6D, BS 5351;
2. Full bore and reduced bore
3. Fire safe, anti-static and blowout proof stem design;
4. Emergency sealant injection;
5. Double Block and Bleed;
6. Cavity pressure self relief;
7. Low emission and live loading packing;
8. Double piston effective seat optional;
9. Optional extended stem for underground or cryogenic service.
Product Range
Body material: carbon steel, stainless steel, alloy steel, duplex steel
Nominal diameter:2"～60"（DN50~DN1500）
End Connection: RF, RTJ, BW
Pressure range: 150LB～2500LB（PN16~PN420）
Working temperature:-46℃～+500℃
Operation: Lever, wrench, gear, electric, pneumatic, hydraulic , electro-hydraulic actuator,etc
