| Name: | Forged steel gate valve |
| Brand: | JHF |
| Production capacity: | 8000 sets per month |
| Min Order Qty: | 1 |
| OEM and ODM: | Yes |
| Application: | Industrial |
| Certificate: | ISO,CE, API, SIL |
| Payment term: | TT, LC, COD, D/P, Credit card |
| Delivery term: | FOB, CNF, DDU |
| Packing: | plywood case |
| HS code: | 8481804090 |
| FOB Port: | Ningbo, Shanghai |
| Guarantee time: | 12 months after shipment |
| Origin: | Wenzhou, China |
Product Description
Description

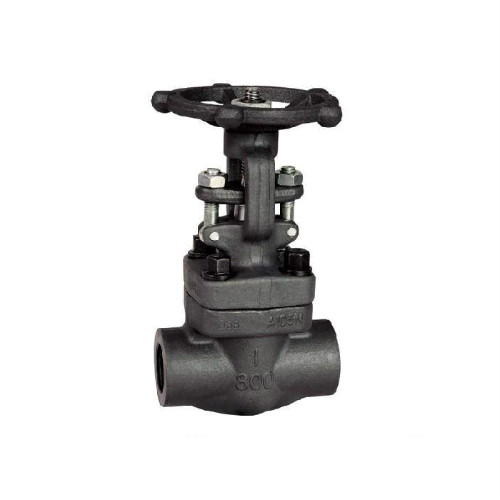

Forged steel gate valves with are designed to API602. Various bonnet options can be provided and seat is plated with hard faced alloy. Double flange ends can be integral or welded.
Features:
1.A compact but extremely sturdy design for high pressure-temperature service.
2. Solid CoCr alloy wedge (optional) ensures low friction and long service life.
3. Fully guided wedge reduces wear on seating surfaces.
4. Optional design available with double packing, leak-off connection, live-loading and a packing blowout for easy removal of old packing.
5. Extended bonnet option for crygetic service
6. Bolted bonnet, welded bonnet, pressure seal bonnet
7. Renewable seat, OS& Y
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Nominal diameter: 1/2~2” (DN15~DN50)
Pressure range: 150LB~2500LB(PN16~PN420)
End connection: SW, NPT, double flange
Working temperature:-196℃～+560℃
Mode of operation: handwheel, gear box, Electric , Pneumatic , etc.
